Konca Auto Reflex ( go to manual )

The official release date for the Konica Autorex was December 1965 .

Classification KONICA II bayonet , 24x36 mm and 18x24 mm , automatic exposure with speed priority
Aperture Mechanism full automatic , stop down for control
Mirror automatic quick return
Shutter metal focal plan Copal Square ; B , 1 - 1000
Viewfinder penta prism
Focusing microdiaprism and fresnel
Meter build in , visible in viewer  ; full coupled , CDS 26° v 34° h , ASA 12 - 800 , LV 2 - 18
Flash Synchronization M & X ( 125 ) ; JIS type B socket
Motor Drive no
Battery  1,3 V mercury
Other Features self timer 10 sec. ; self resetting exposure counter
Color chrome and black leather or full black
Weight 990 gr
Size 145,5 x 94.5 x 88,5 mm
Production Years
Number produced
Price new ( 19xx  )
Price used ( 2000 )
Remarks
Variations & Serial Numbers

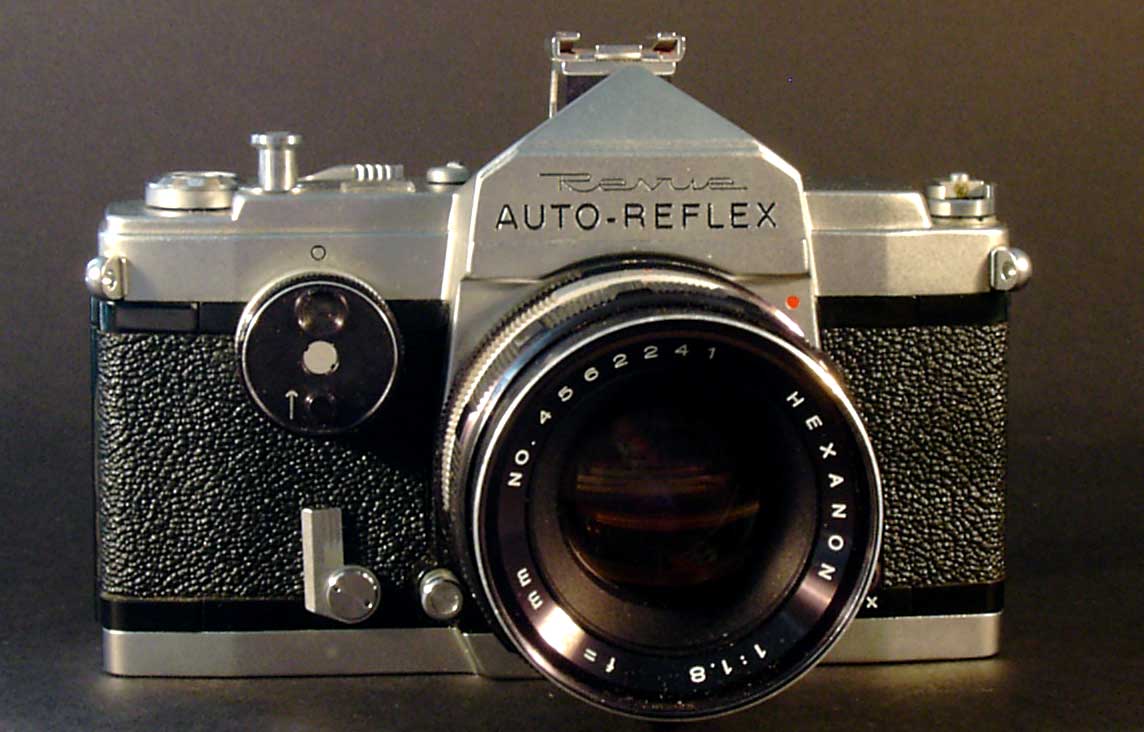

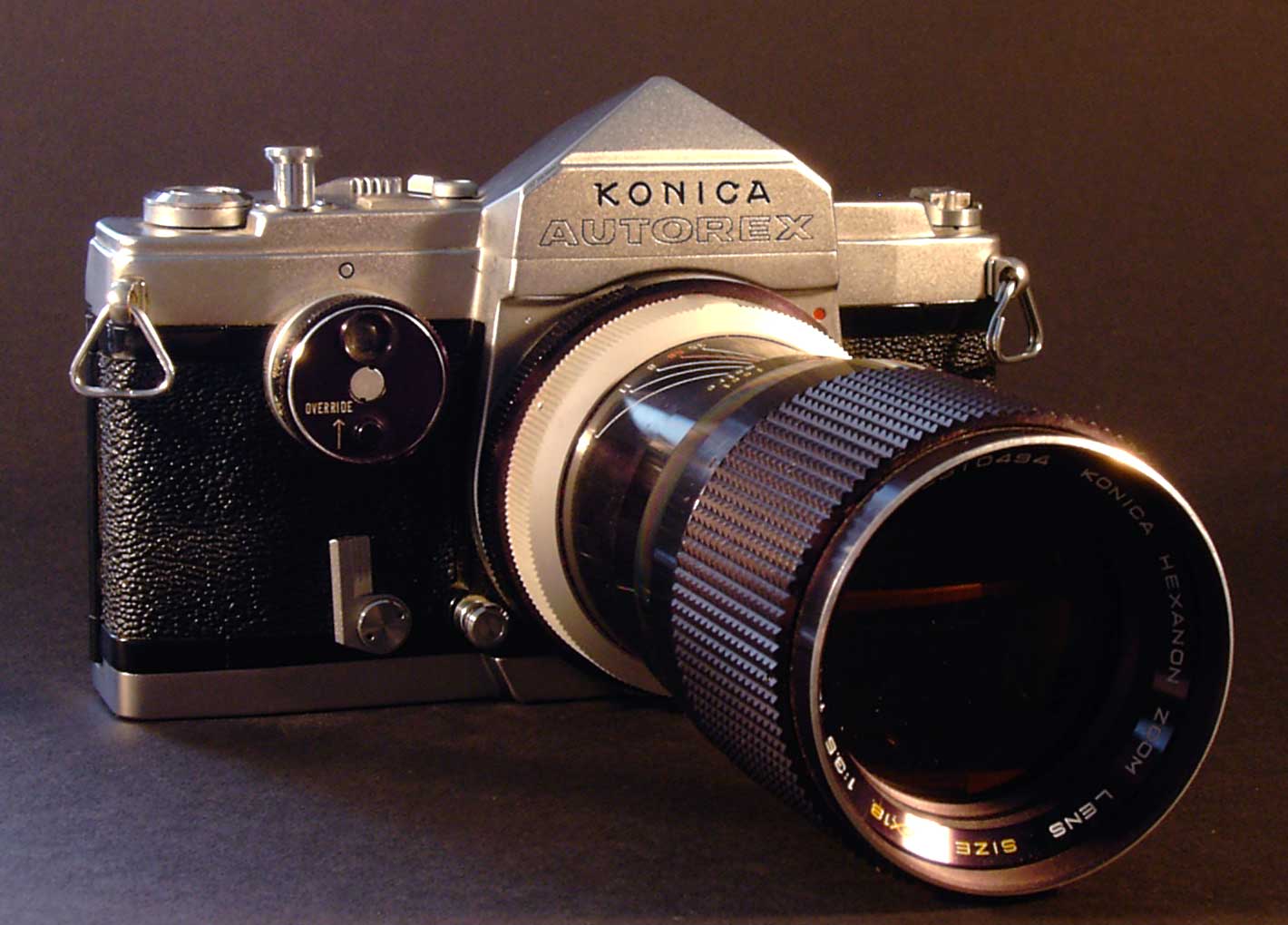

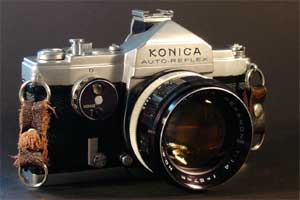

AUTO-REFLEX AUTO REFLEX AUTOREX

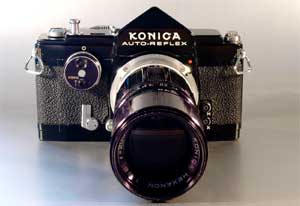

3830750 / 3827177 / 840289 848072 / 874244 (black)    887965

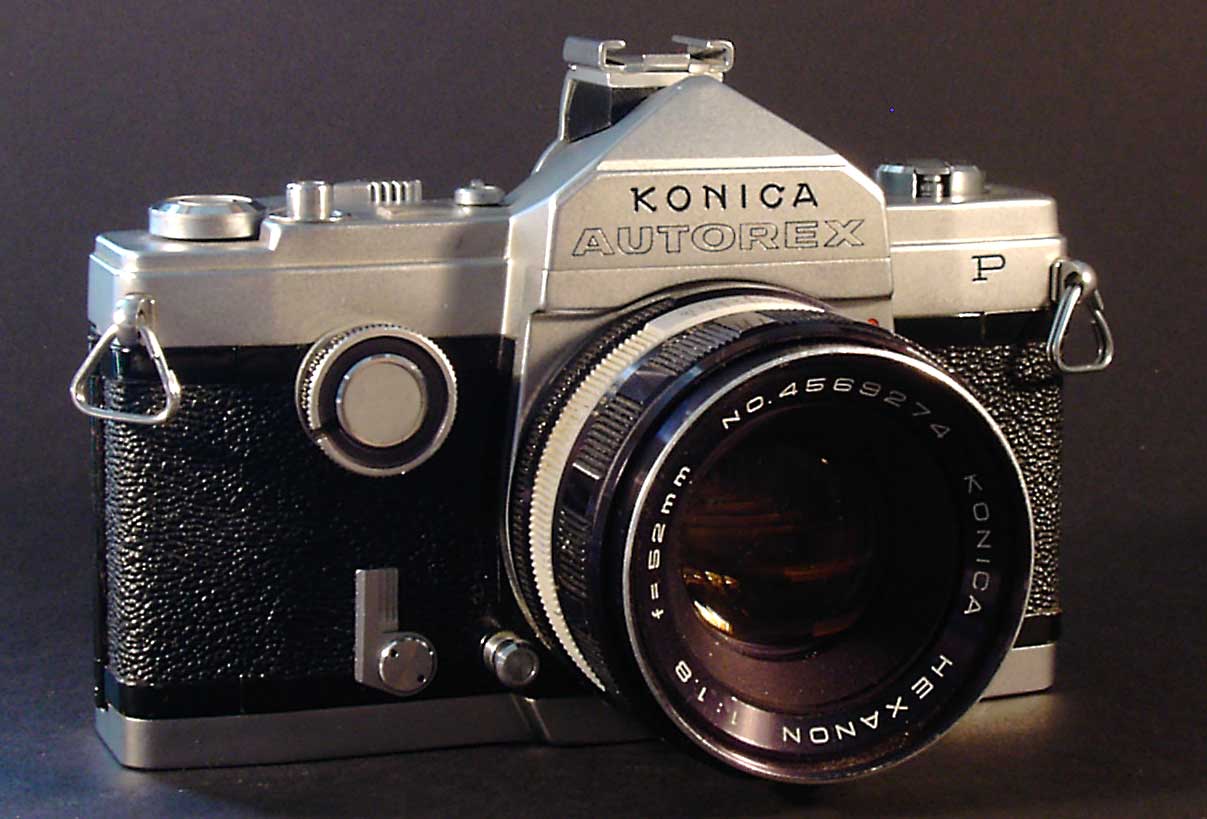

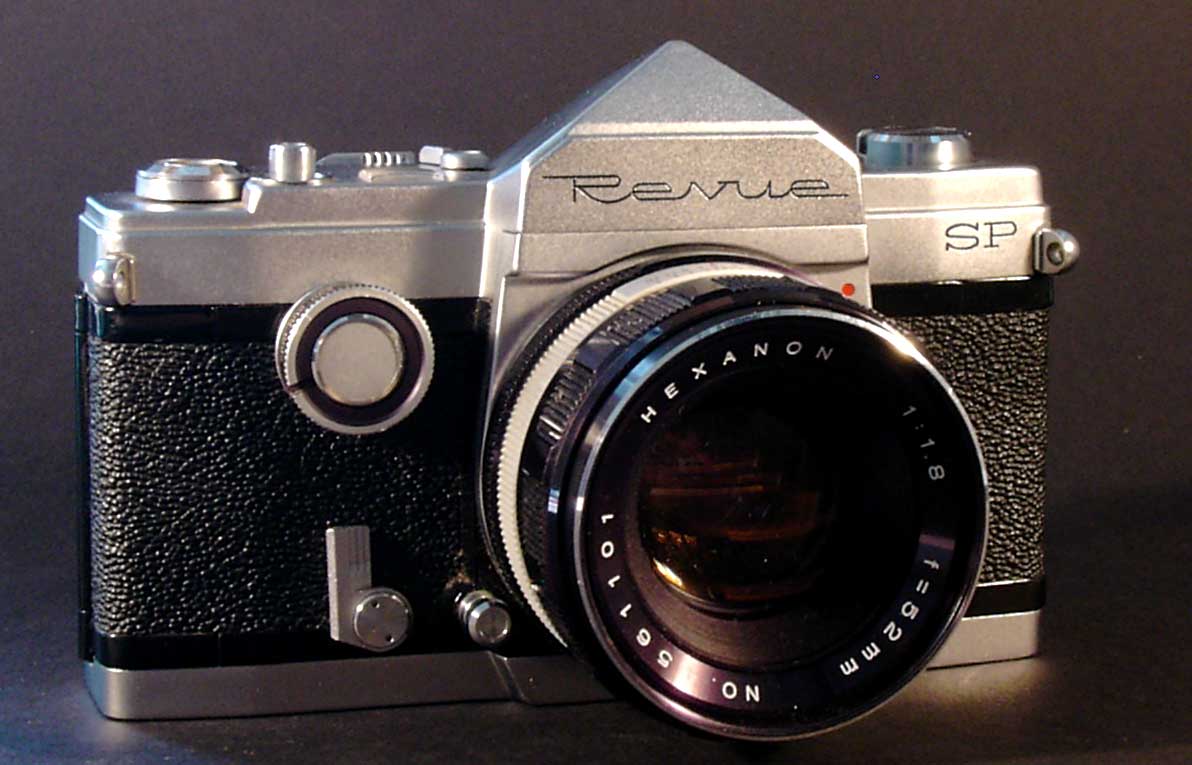

AUTOREX P Revue AUTO-REFLEX Revue SP
876511 893745 865358
Referenced by Camerquest Auto-Reflex
Back to camera list Submit your comment or information Submit your Serial Number

Picture Gallery

( taken with this camera )
